Product Information
At the pinnacle of performance and innovation, we proudly present the XP line—an impressive evolution in your audio experience. Designed with state-of-the-art technology and enhanced by artificial intelligence, XP amplifiers embody the core DNA of SounDigital: innovation, excellence, and precision. The XP line delivers exceptional audio performance, combining advanced engineering with superior components to ensure reliability and remarkably faithful sound clarity. Its compact and versatile design allows seamless integration into a wide range of applications, meeting diverse needs with efficiency and practicality. Whether you’re an audiophile or a casual listener, XP amplifiers elevate your audio experience, striking the perfect balance between cutting-edge technology and exceptional quality. With the XP line, hear sound as it was meant to be heard.

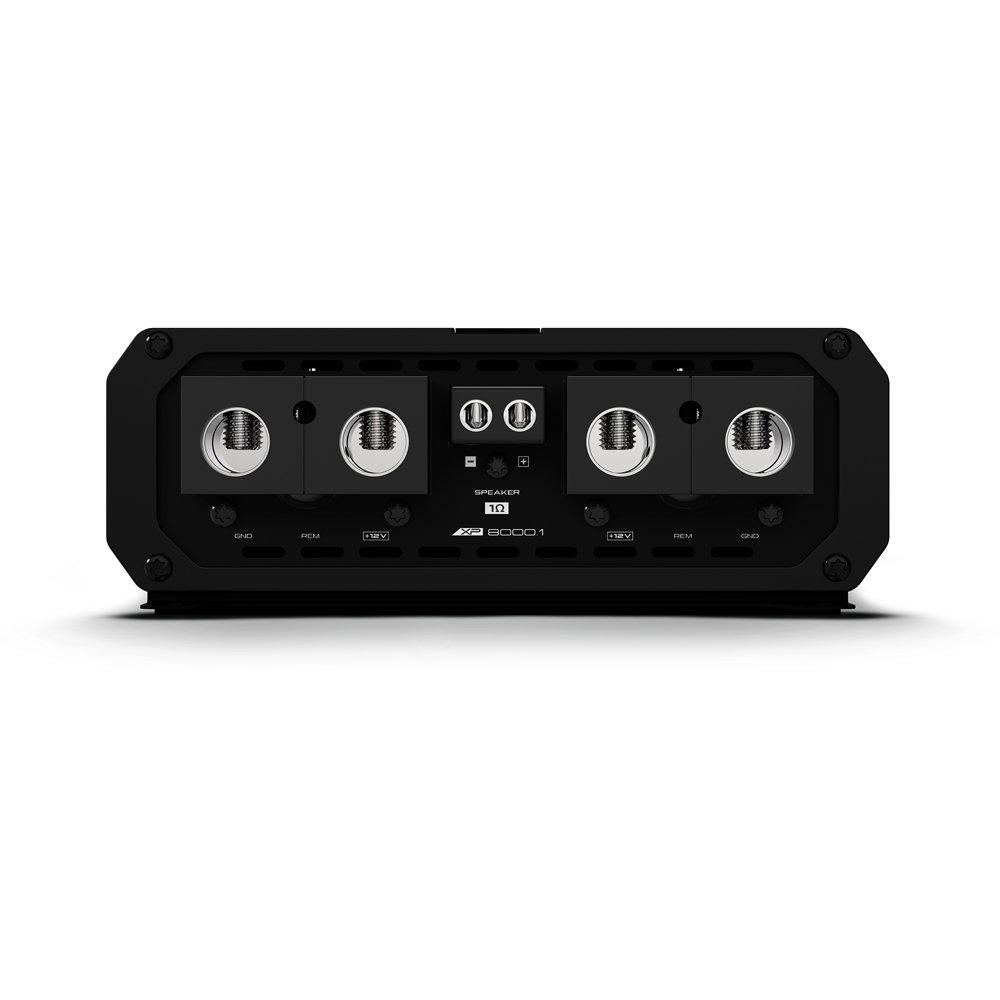

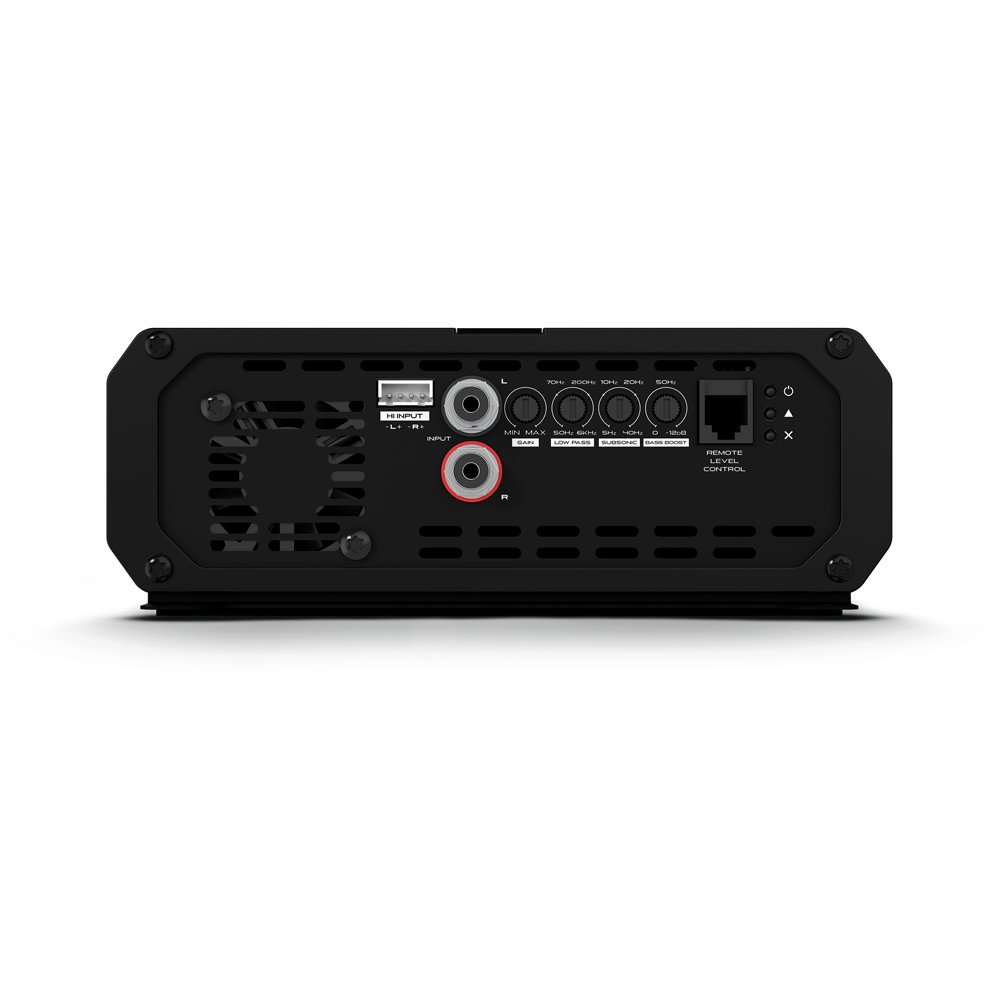

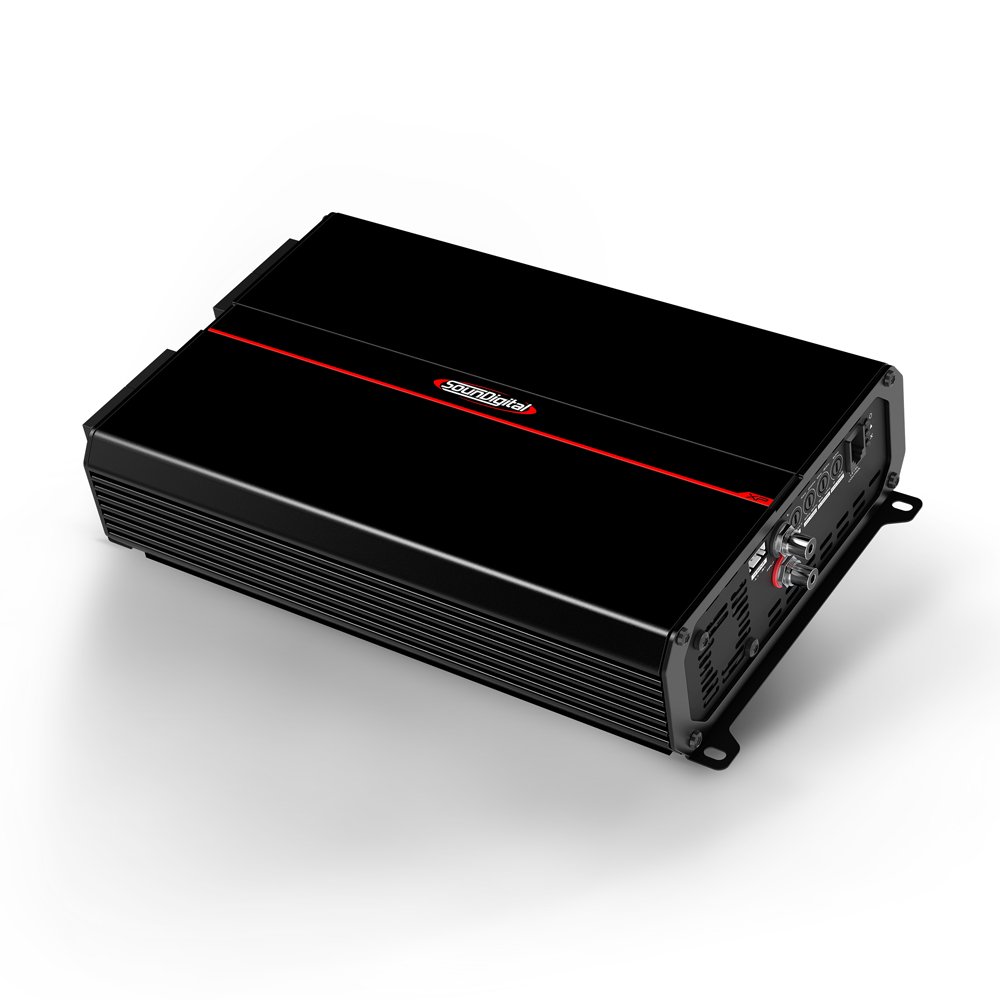

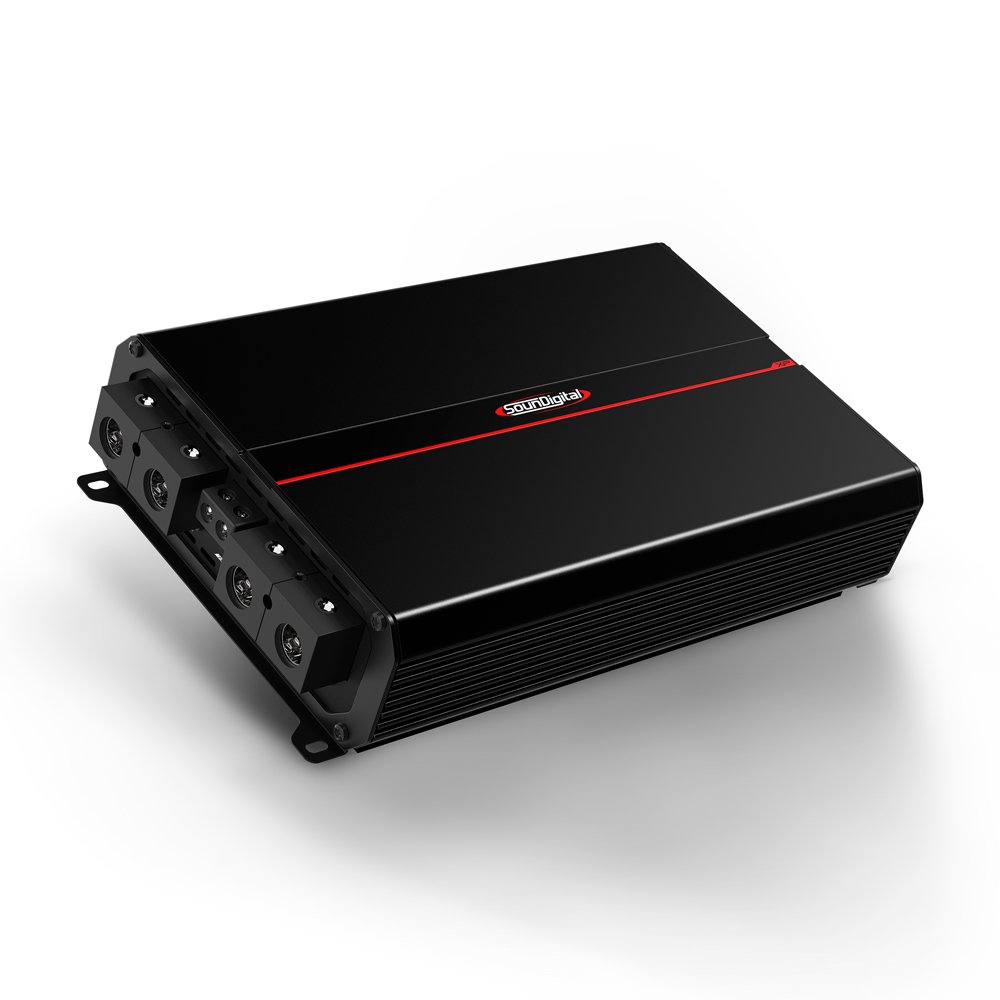

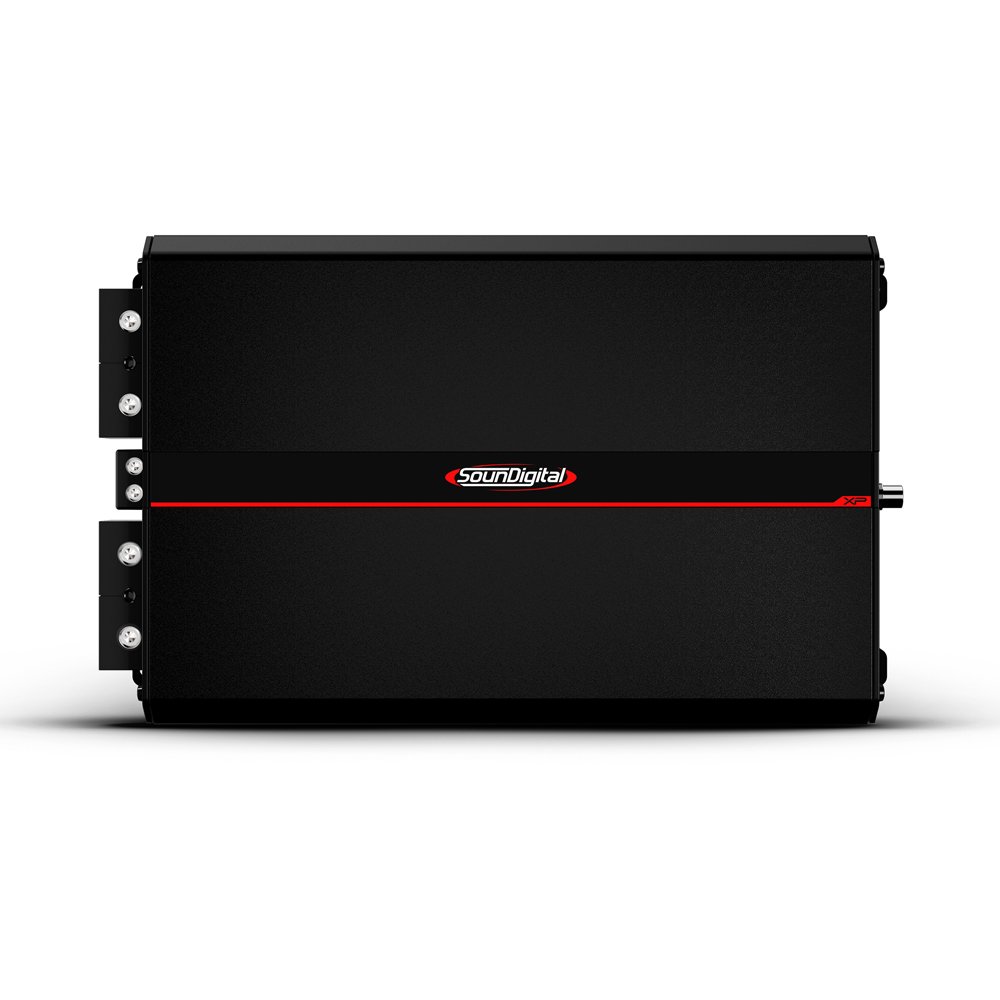

XP 8000.1 – 1Ω
| Power @ 4Ω | 1 X 3520 WRMS |
|---|---|
| Power @ 2Ω | 1 X 5300 WRMS |
| Power @ 1Ω | 1 X 8000 WRMS |
| Operating Voltage | 9V – 16V |
| Current Draw (Music) | 334 A |
| Current Draw (Max) | 668 A |
| Recommended Fuse (Music) | 400 A |
| Frequency Response (-3dB) | 5Hz – 6000Hz |
| SNR | 82dB |
| Crossover HPF | 5Hz – 40Hz |
| Crossover LPF | 50Hz – 6000Hz |
| THD + N (10% Rated Power) | 0.1% |
| Recommended Battery | 400aH |
| Power Cable | 000AWG |
| Speaker Cable | 5AWG |
| Product Dimensions | 11.8 x 7.1 x 2.52 in / 29.9 x 18.0 x 6.4 cm |
XP 8000.1 – 2Ω
| Power @ 4Ω | 1 X 5300 WRMS |
|---|---|
| Power @ 2Ω | 1 X 8000 WRMS |
| Power @ 1Ω | N/A |
| Operating Voltage | 9V – 16V |
| Current Draw (Music) | 334 A |
| Current Draw (Max) | 668 A |
| Recommended Fuse (Music) | 400 A |
| Total Efficiency | 79% |
| Damping Factor | >2000 |
| Frequency Response (-3dB) | 5Hz – 6000Hz |
| SNR | 82dB |
| Crossover HPF | 5Hz – 40Hz |
| Crossover LPF | 50Hz – 6000Hz |
| THD + N (10% Rated Power) | 0.1% |
| Recommended Battery | 400aH |
| Power Cable | 000AWG |
| Speaker Cable | 5AWG |
| Product Dimensions | 11.8 x 7.1 x 2.52 in / 29.9 x 18.0 x 6.4 cm |
